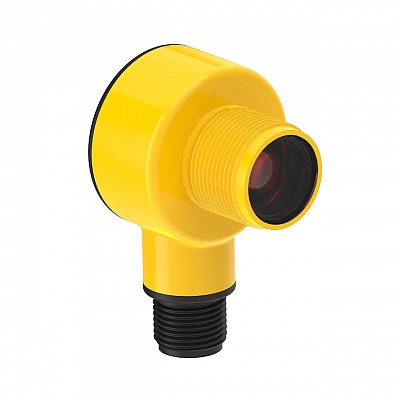

BANNER T18-2 Series: Receiver with Pot; Range Variable to 25m, Input: 10-30V dc, Output: Complementary PNP, 4-pin M12 QD

Part No: T18-2VPRS-Q8

Attributes

Adjustment Potentiometer
Connection M12 4-pin
Housing M18
Housing Material Thermoplastic
IO-Link No
IP Rating IP67 / IP69K
Light Source Red LED
Max Range (mm) 25000
Min Range (mm)
Output PNP
Range Group 10-50 m
Sensing Mode Thru-beam Receiver
Switching Function NO/NC (Complementary)
Voltage 24VDC
Description Filename Size Type Modified
Data Sheet T18-2VPRS-Q8 _ T18-2 Series Rugged, Washdown Sensors for Harsh Environments.pdf 283.15 KB pdf 19/03/2026 download
Catalogue V1.7 2026 e-catalog Turck_Banner.pdf 5.62 MB pdf 26/10/2026 download
