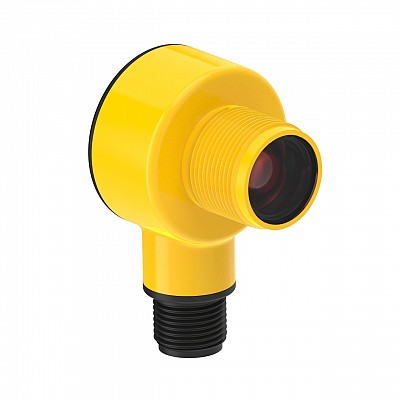

BANNER T18-2 Series: Diffuse Reflective with Pot, Range 750mm M12 connector

Part No: T18-2VPDLIR-Q8

Attributes

Adjustment Potentiometer
Connection M12 4-pin
Housing M18
Housing Material Thermoplastic
IO-Link No
IP Rating IP67 / IP69K
Light Source Infrared LED
Max Range (mm) 750
Min Range (mm)
Output PNP
Range Group 500 mm - 1 m
Sensing Mode Diffuse
Switching Function NO/NC (Complementary)
Voltage 24VDC
Description Filename Size Type Modified
Data Sheet T18-2VPDLIR-Q8.pdf 862.12 KB pdf 21/01/2025 download
Catalogue V1.7 2026 e-catalog Turck_Banner.pdf 5.62 MB pdf 04/11/2026 download
