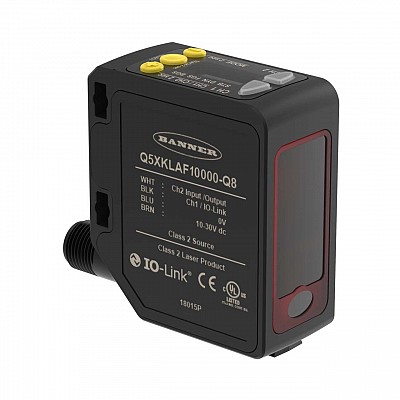

BANNER Q5X SERIES, LASER ADJUSTABLE FIELD, 50 TO 10000MM, 10-30V DC, 1 PNP,1 NPN,WITH IO-LINK DIFFUSE, M12 4-PIN

Part No: Q5XKLAF10000-Q8

Attributes

Adjustment Remote Teach
Connection M12 4-pin
Housing Rectangular / Block
Housing Material ABS
IO-Link Yes
IP Rating IP67
Light Source Laser Class 2
Max Range (mm) 10000
Min Range (mm) 50
Output PNP/NPN (Selectable)
Range Group 5-10 m
Sensing Mode Background Suppression
Switching Function NO/NC Programmable
Voltage 24VDC
Description Filename Size Type Modified
Data Sheet Q5XKLAF10000_Q8.pdf 1.69 MB pdf 19/12/2024 download
Catalogue V1.7 2026 e-catalog Turck_Banner.pdf 5.62 MB pdf 23/11/2026 download
