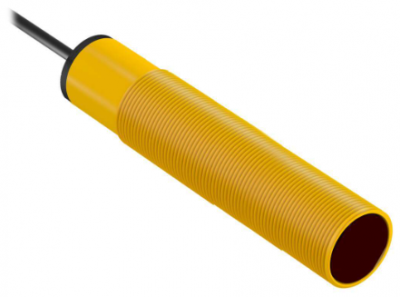

BANNER PHOTOELECTRIC SENSOR S18 EZ-BEAM SERIES, 20-250 Vac, RANGE 20 M, Output: SPST Solid-State, Light operate, 2M cable

Part No: S18AW3R

Attributes

Adjustment None
Connection Cable
Housing M18
Housing Material Thermoplastic
IO-Link No
IP Rating IP67 / IP69K
Light Source Infrared LED
Max Range (mm) 20000
Min Range (mm)
Output AC 2-Wire
Range Group 10-50 m
Sensing Mode Thru-beam Receiver
Switching Function Normally Closed (NC)
Voltage 20-250VAC
Description Filename Size Type Modified
Technical Spec S18AW3R.pdf 1.15 MB pdf 09/03/2026 download
Data Sheet S18AW3R _ S18 Series Epoxy Encapsulated Barrel-Mount Sensor.pdf 213.63 KB pdf 19/03/2026 download
Catalogue V1.7 2026 e-catalog Turck_Banner.pdf 5.62 MB pdf 26/10/2026 download
