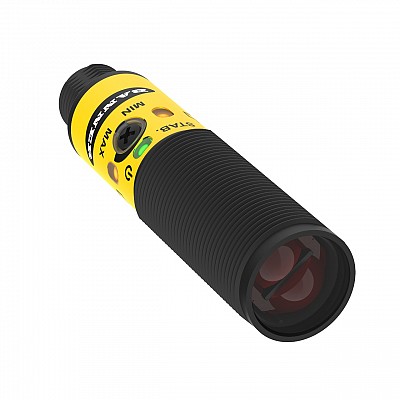

BANNER PHOTOELECTRIC S18-2 Series: Diffuse Reflective;Range: 750 mm; Input: 10-30 V dc;Outputs: complementary PNP;M12 4-pin Connector

Name: BANNER PHOTOELECTRIC S18-2 Series: Diffuse Reflective;Range: 750 mm; Input: 10-30 V dc;Outputs: complementary PNP;M12 4-pin Connector
Brand: Banner

Part No: S18-2VPDL-Q8

BANNER PHOTOELECTRIC S18-2 Series: Diffuse Reflective;Range: 750 mm; Input: 10-30 V dc;Outputs: complementary PNP;M12 4-pin Connector

Part No: S18-2VPDL-Q8

Compare this product with another

Attributes

Adjustment	Potentiometer
Connection	M12 4-pin
Housing	M18
Housing Material	Thermoplastic
IO-Link	No
IP Rating	IP67
Light Source	Red LED
Max Range (mm)	750
Min Range (mm)
Output	PNP
Range Group	500 mm - 1 m
Sensing Mode	Diffuse
Switching Function	NO/NC (Complementary)
Voltage	24VDC
